Click the instructions listed down below
■ Change the Language
■ How to find a SSID and Password
■ 601HW Profile Setting
Change the language

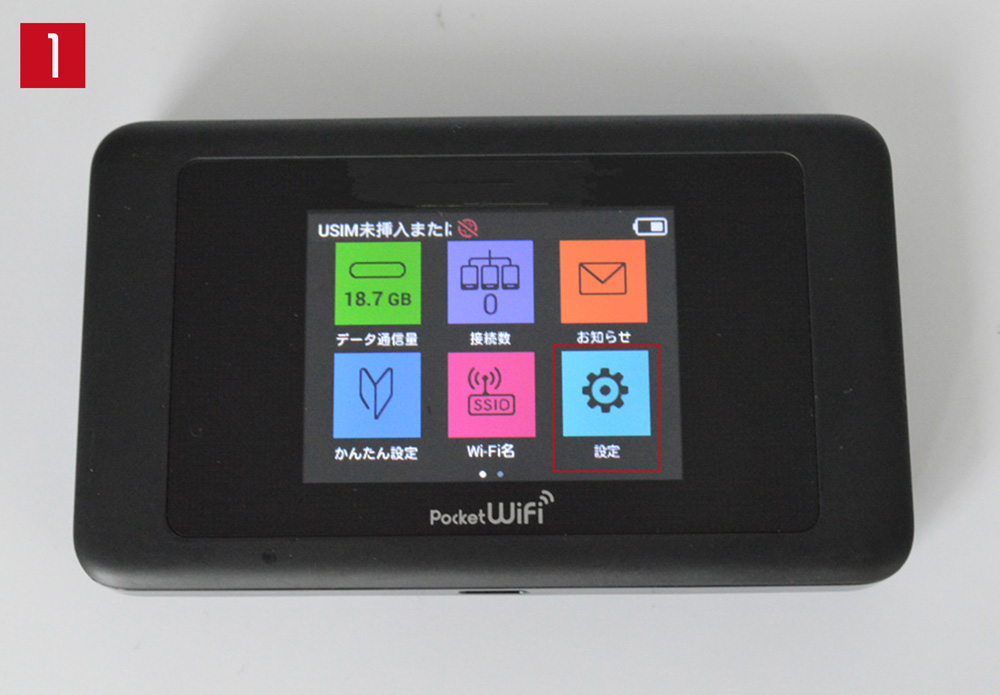

1.Press “設定”.

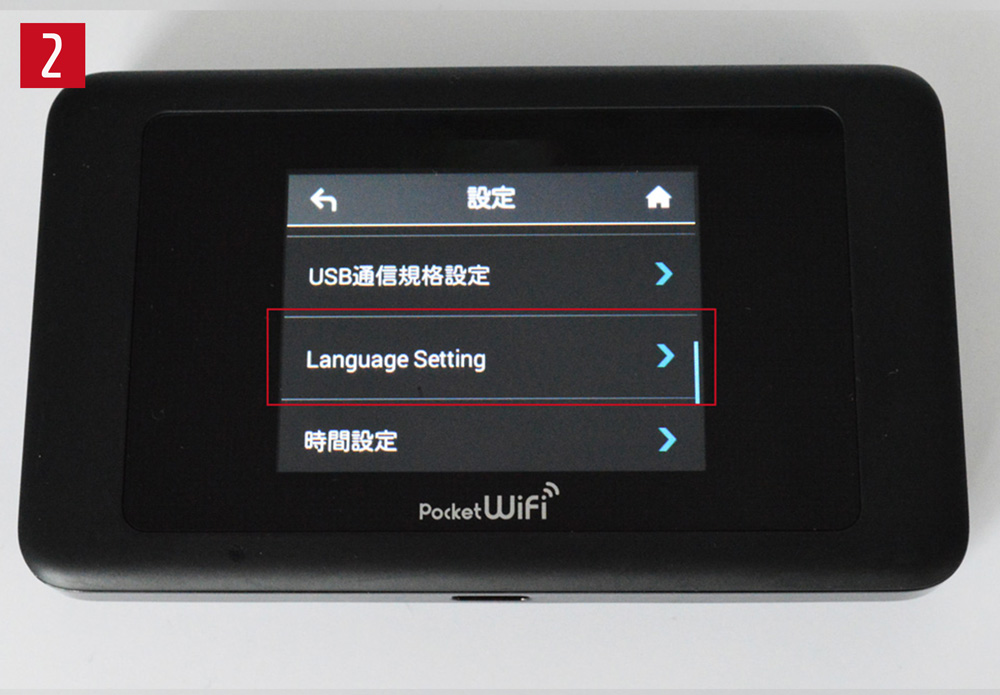

2.Press”システム設定”
How to find a SSID and Password

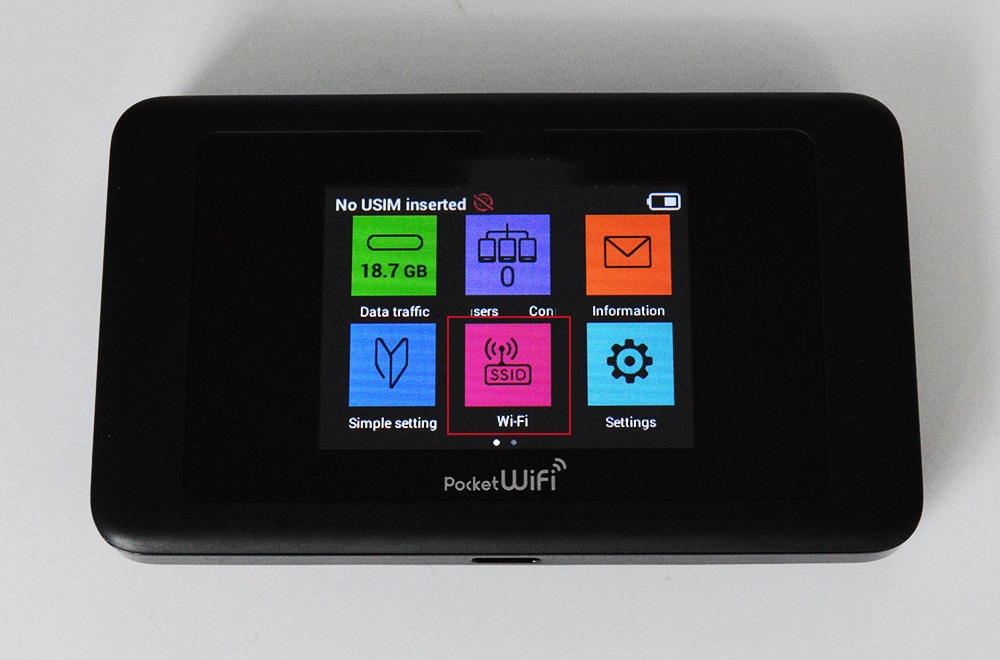

1.Select “Wi-Fi” icon.

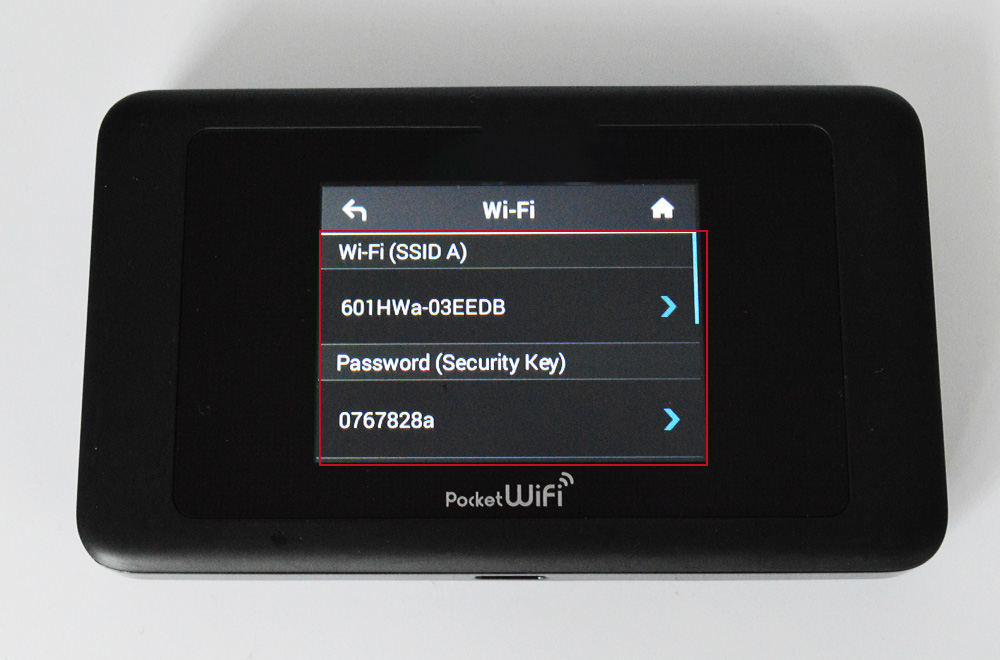

2.Once you have found the SSID on your pocket Wi-fi, look for the SSID on your phone/PC on the Wi-fi section. If you found the SSID on your phone/PC enter the password to connect to the Wi-fi. The password is shown under the SSID.
601HW Profile Setting
The following settings have been registered at the time of shipment.
If you had RESET the device, you have to need to setting following connection setup operations
Connect to 601HW on your PC or Mobile Phone and Start the web browser,
Enter “http://web.setting” in the address entry field.
(even if no signal, only can connect to “http://web.setting”)
①Click “Login” at the top right of the displayed setting tool screen
②Enter Passward “admin”
③Click “login”
**If you are going to set it up on your mobile phone please change from “Mobile view” to “PC view”.
*NOTE : If “Your login password is too weak. Please change your password to avoid security problems.” is displayed,
click the “Later” button to proceed. Please don’t change the password.
②Enter Passward “admin”
③Click “login”
**If you are going to set it up on your mobile phone please change from “Mobile view” to “PC view”.
*NOTE : If “Your login password is too weak. Please change your password to avoid security problems.” is displayed,
click the “Later” button to proceed. Please don’t change the password.
①Top menu “Settings” → click “Mobile network settings”
②Click “Profile Management”
③Click “New Profile” on the bottom right.
Enter the following required information and click the “Apply” button.
| ①Profile Name | SB |
| ②APN Name | plus.4g |
| ③User Name | plus |
| ④Password | 4g |
Choose pulldown▼
⑤Authorization : CHAP
⑥click “Save”
After saving, if the “Antenna” and “Globe” icons on the upper right turn light blue, it’s done. Please log out and close the screen.
