Click the instructions listed down below

■ Change the Language

■ How to find a SSID and Password

■ W06 Profile Setting

■ W06 How to restore data usage






Change the language

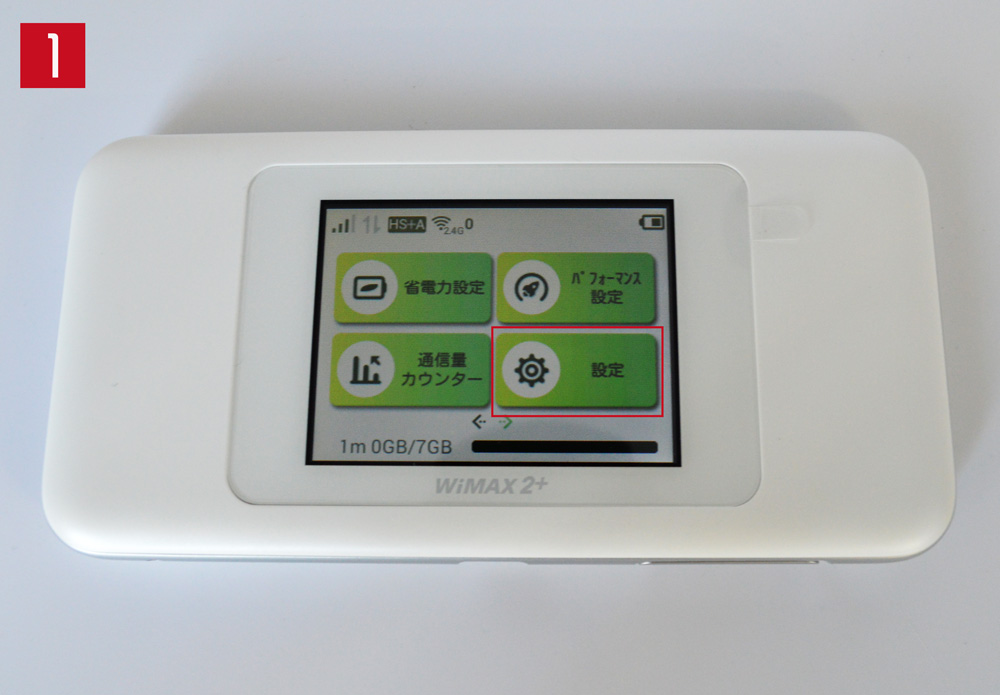

1.Press “設定”.

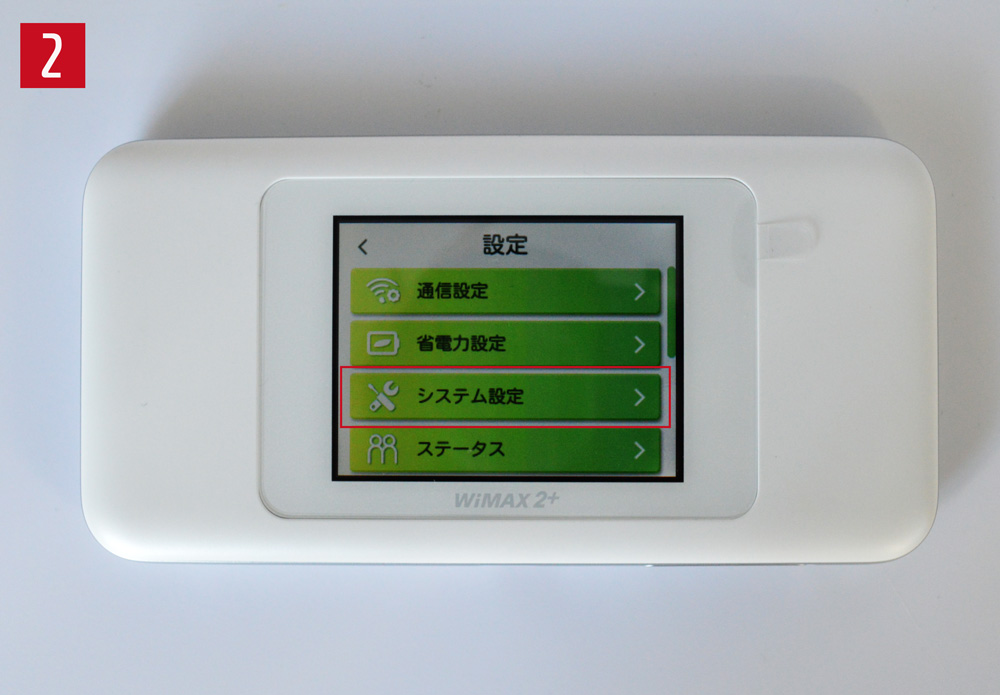

2.Press”システム設定”

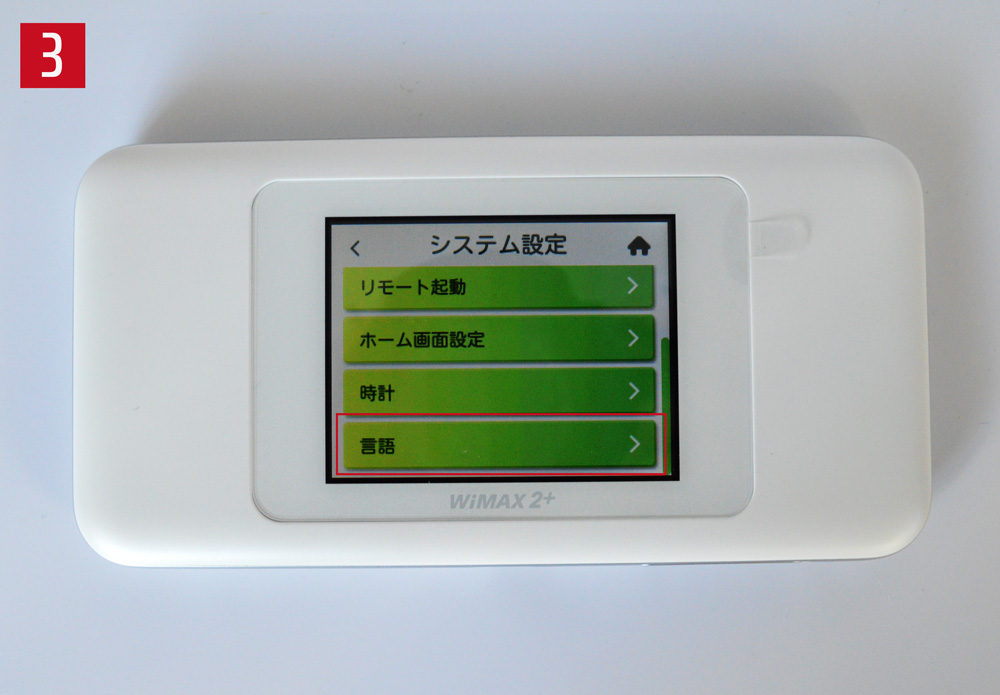

3.Press “言語”

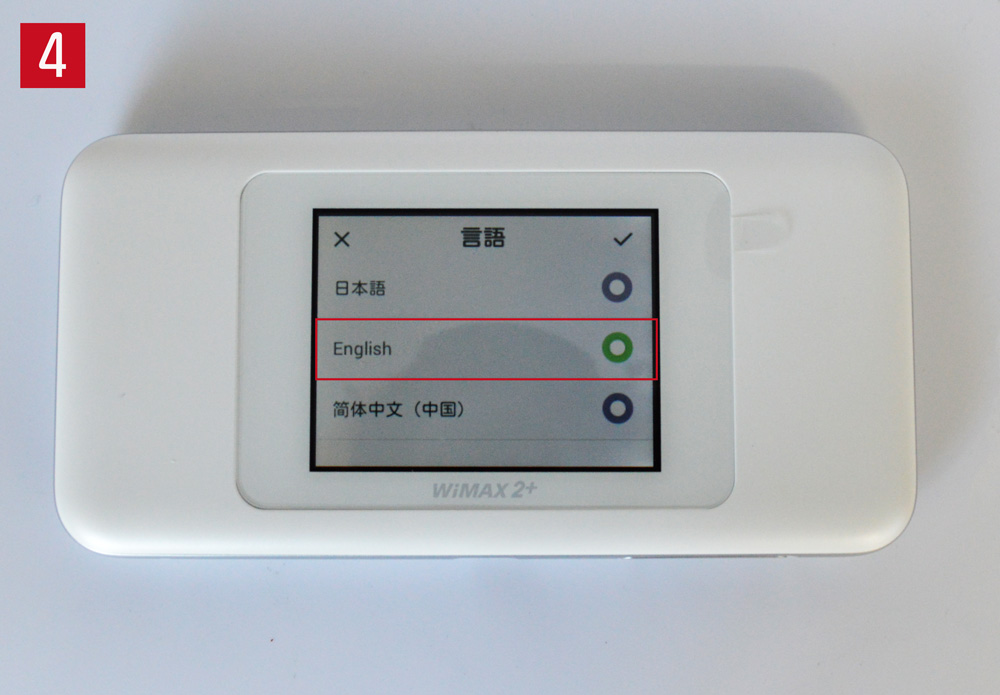

4.Select “English”




How to find a SSID and Password

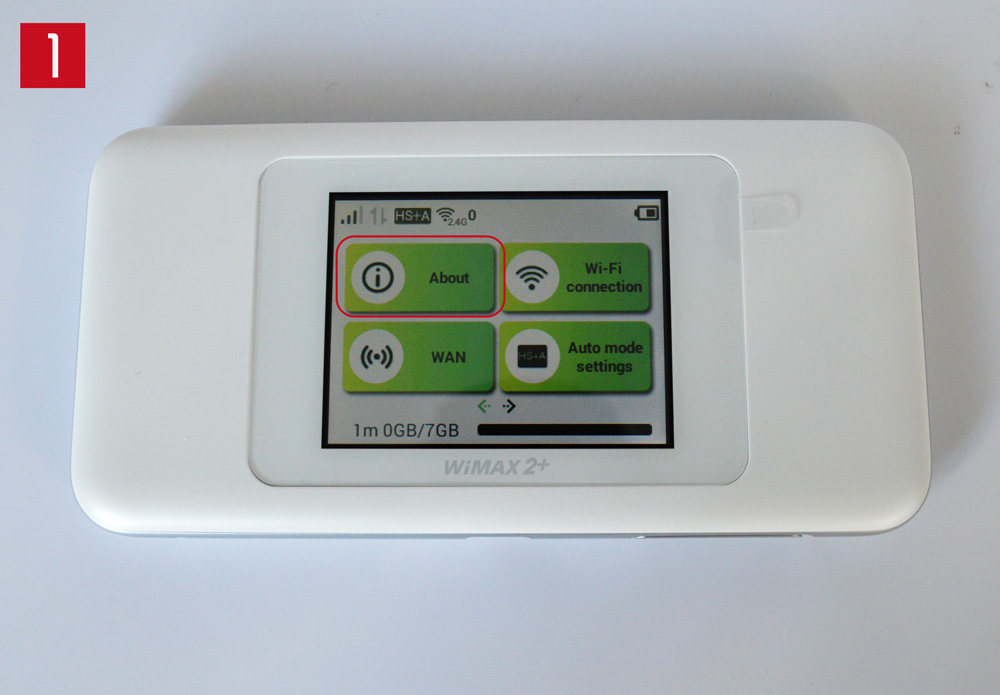

1.Select “About”.

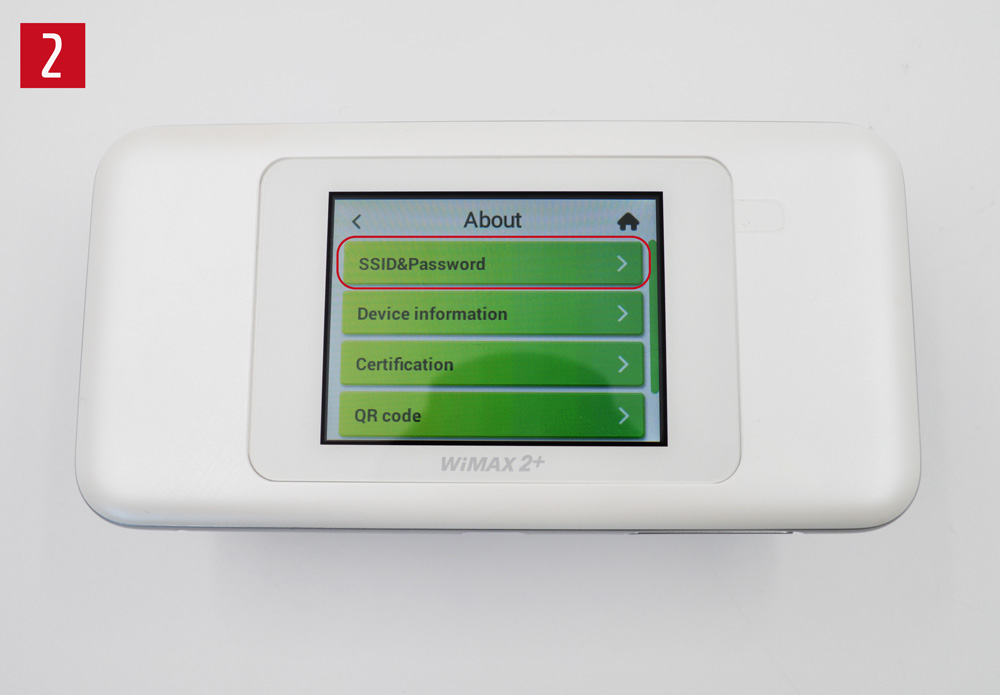

2.Select “SSID & Password”

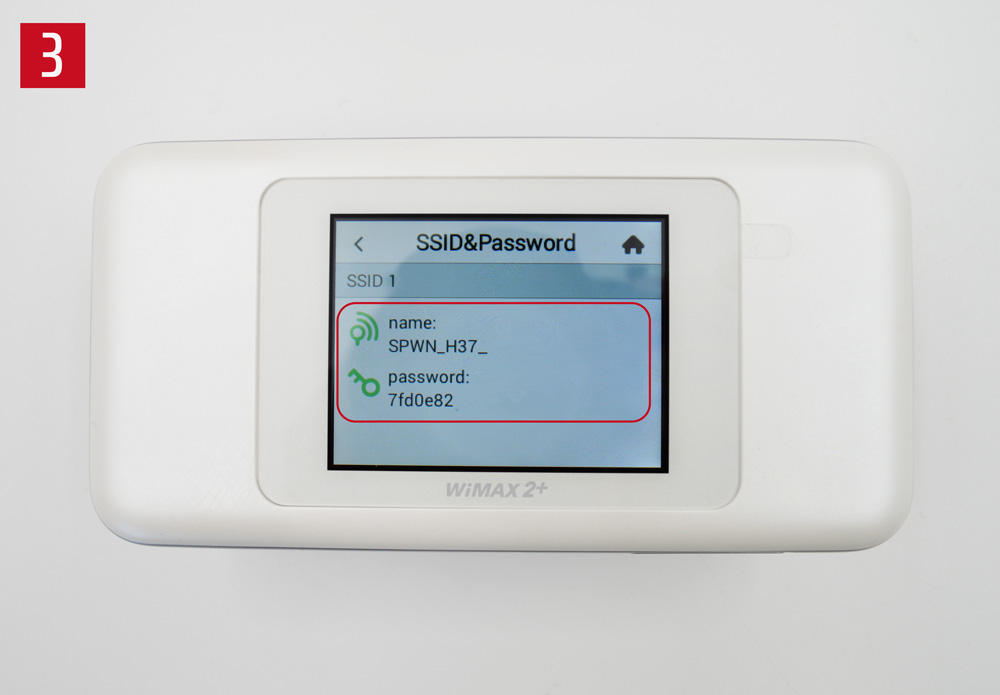

3.Once you have found the SSID on your pocket Wi-fi, look for the SSID on your phone/PC on the Wi-fi section. If you found the SSID on your phone/PC enter the password to connect to the Wi-fi. The password
is shown under the SSID.




W06 profile setting

The following settings have been registered at the time of shipment.
If you had RESET the device, you have to need to setting following connection setup operations

Connect to WX06 on your PC or Mobile Phone and Start the web browser ,
Enter “http://speedwifi-next.home” in the address entry field.(even if no signal, only can connect to “http://speedwifi-next.home”)


profile setting


Enter User Name “admin” and Password “*W06 device IMEI last 5 digits”
*The password is the initial value of the last 5 digits of the IMEI written at the bottom of the back of the W06 main unit.

*connect to W06 on your PC or Mobile Phone. You can change languages in English.


profile setting

*NOTE : Click “Login” at the top right of the displayed setting tool screen
If you see a message box asking you to change your password, click Later.(you don’t actually need to make any changes)

If you could login The setting screen of the Speed ​​Wi-Fi NEXT setting tool is displayed.


profile setting

①Click “setting”
②Click “profile setting” at the left menu of the displayed setting tool screen
③The default profile [Internet] is displayed.click “New” at the bottom


profile setting
*Please enter the information below

①Profile NameSB
②APN Nameplus.4g
③User Nameplus
④Password4g

Choose pulldown▼
⑤Authorization Method : CHAP
⑥IP Type : IPv4
⑦Click “Save”
Note: Pressing the “Save” button will save the settings and enable the global IP option.
Please note that a monthly fee of 105 yen (including tax) will be charged when the Global IP Option is enabled.


profile setting
Click “Continue”

profile setting
last Step : You have to apply High Speed Plus Area so tap pulldown “communication Mode Setting : High Speed Plus Area” and “Disabled” → Click Apply

profile setting
Confirm : Click “OK”
Waitting for start reboot end, If the setting tool screen and the W07 device screen are displayed as shown below, the process is complete.



W06 How to restore data usage settings

①Check the alert in a display then ②Click “DATA Count”


①Click “Clear” ②Pllu down “1Month > ”


Click “Off”

Thank you!
