Click the instructions listed down below
■ Change the Language
■ How to find a SSID and Password
■ W07 Profile Setting
Change the language

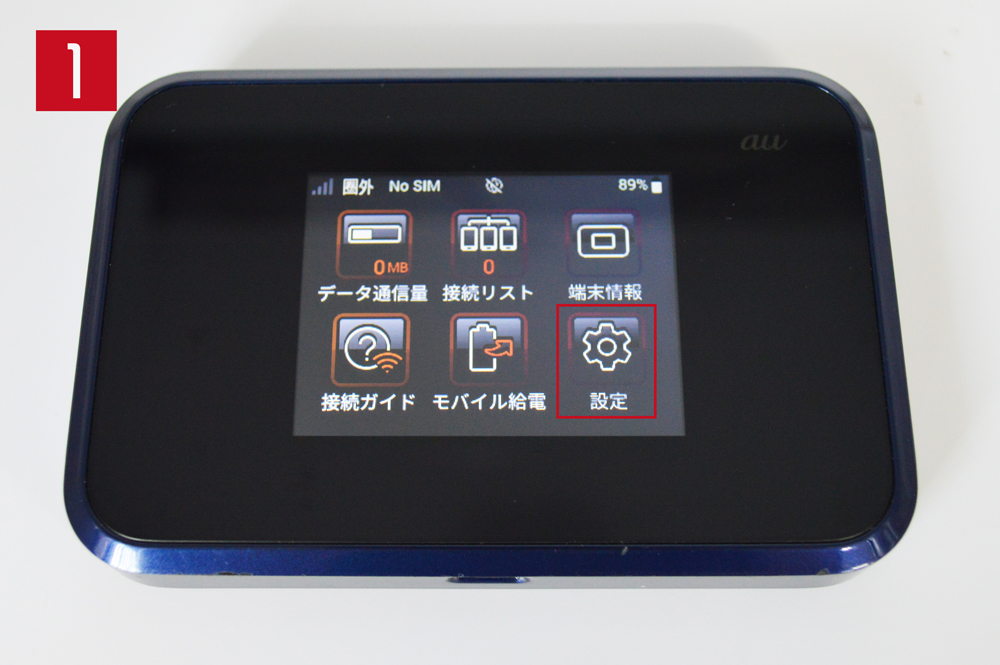

1.Press “設定”.

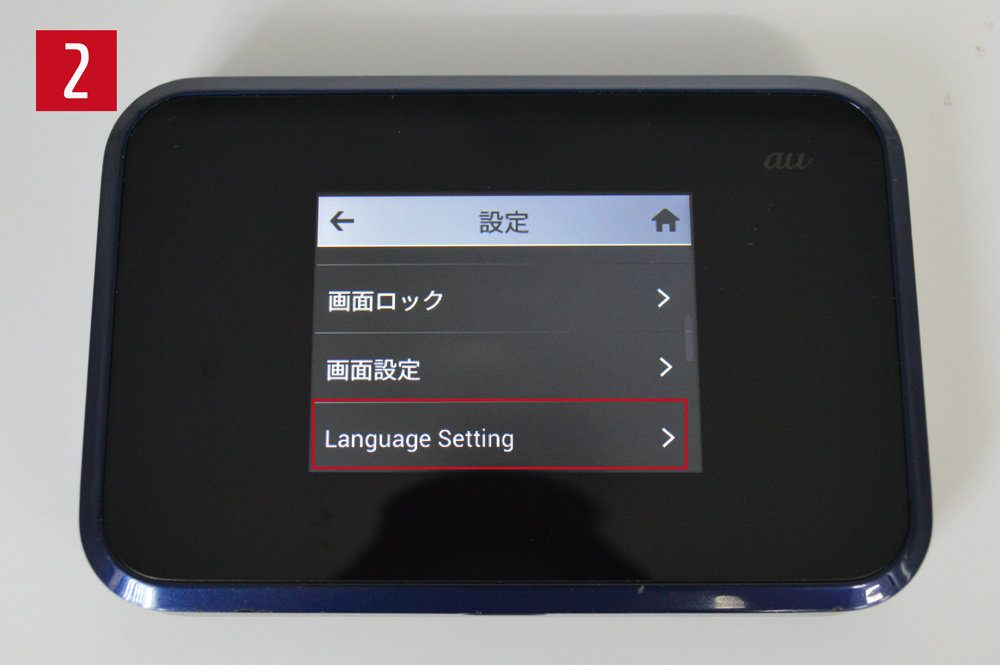

2.Press”Manual Connection”

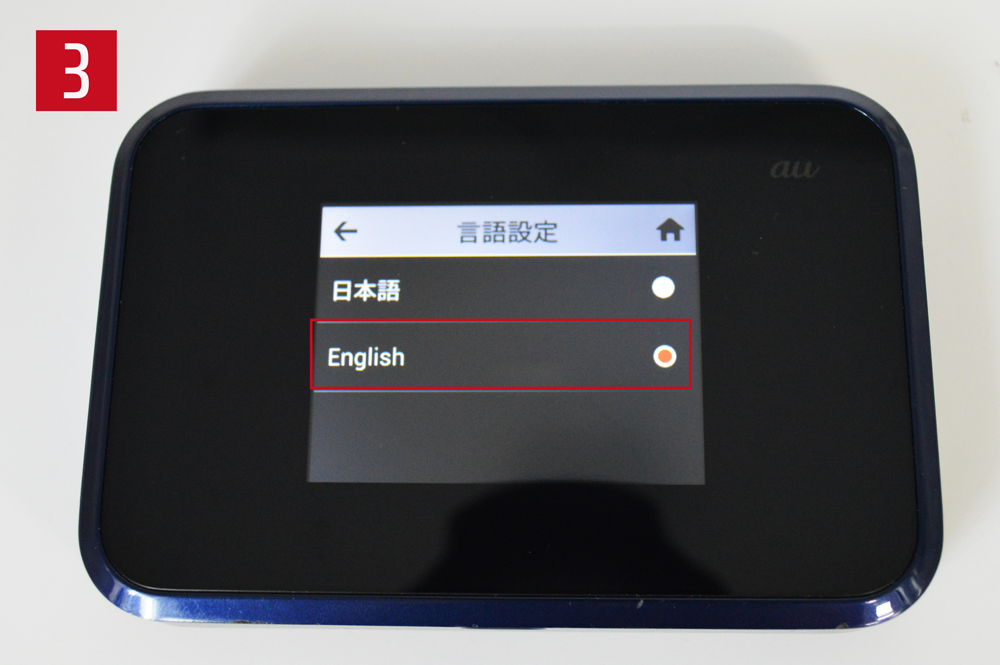

3.Press “English”
How to find a SSID and Password
1.Press “Information”.
2.Select “Wi-Fi Information”

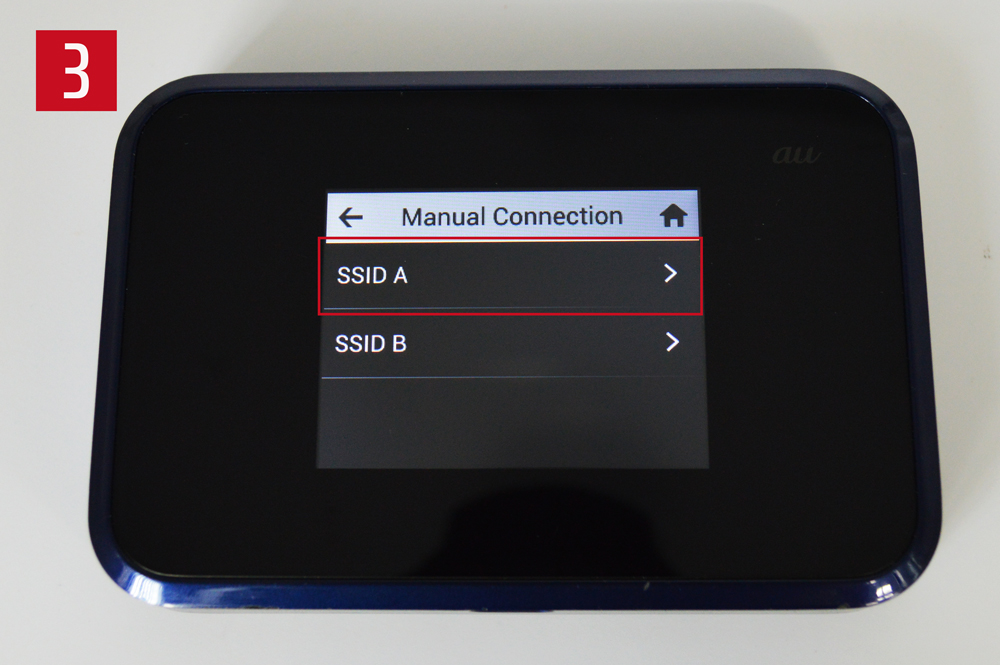

3.Press “SSID A”

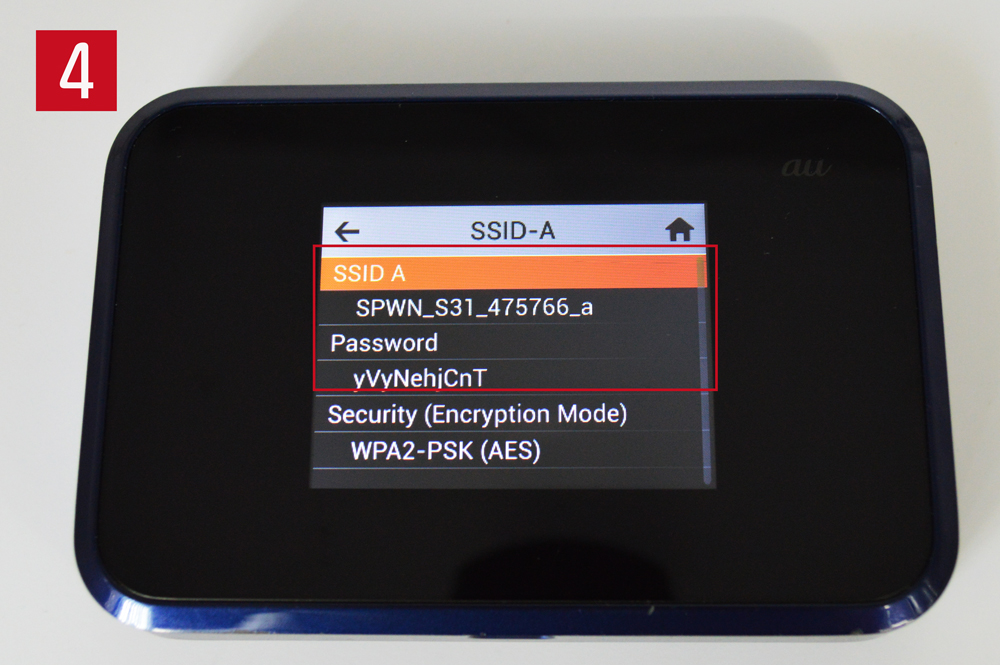

4.Once you have found the SSID on your pocket Wi-fi, look for the SSID on your phone/PC on the Wi-fi section. If you found the SSID on your phone/PC enter the password to connect to the Wi-fi. The password
is shown under the SSID.
W07 Profile Setting
The following settings have been registered at the time of shipment.
If you had RESET the device, you have to need to setting following connection setup operations. You can change languages in English.
*connect to W07 on your PC or Mobile Phone.
Start the web browser on the connected Computer or mobile phone, Enter “192.168.128.1” in the address entry field.(even if no signal, only can connect to “192.168.128.1”)
Click “Login” at the top right of the displayed setting tool screen.
①Click “Login” at the top right of the displayed setting tool screen
②Enter Passward [*last 6 digits of W07 device] →click login.
*NOTE : Click “Login” at the top right of the displayed setting tool screen
If you see a message box asking you to change your password, click OK.(you don’t actually need to make any changes)
①”Network” in the setting tool screen
②”APN profile setting”
③Click “New”
*Please enter the information below
| ①Profile Name | SB |
| ②APN Name | plus.4g |
| ③User Name | plus |
| ④Password | 4g |
Choose pulldown▼
⑤Authorization Method : CHAP
⑥IP Type : IPv4
⑦IP Type(Roaming) : IPv4
Click on the dropdown button “INTERNET ▼” on the right side “APN for network attach” then choose “SB” → Click”Apply”
“After clicking the apply button,this device will reboot automatically for the modified setting to take effect.”→click “OK”
Watting for start reboot end,If the setting tool screen and the W07 device screen are displayed as shown below, the process is complete.
Thank you!
