Click the instructions listed down below
■ Change the Language
■ How to find a SSID and Password
■ WX04 Profile Setting
■ WX04 How to restore data usage
Change the language

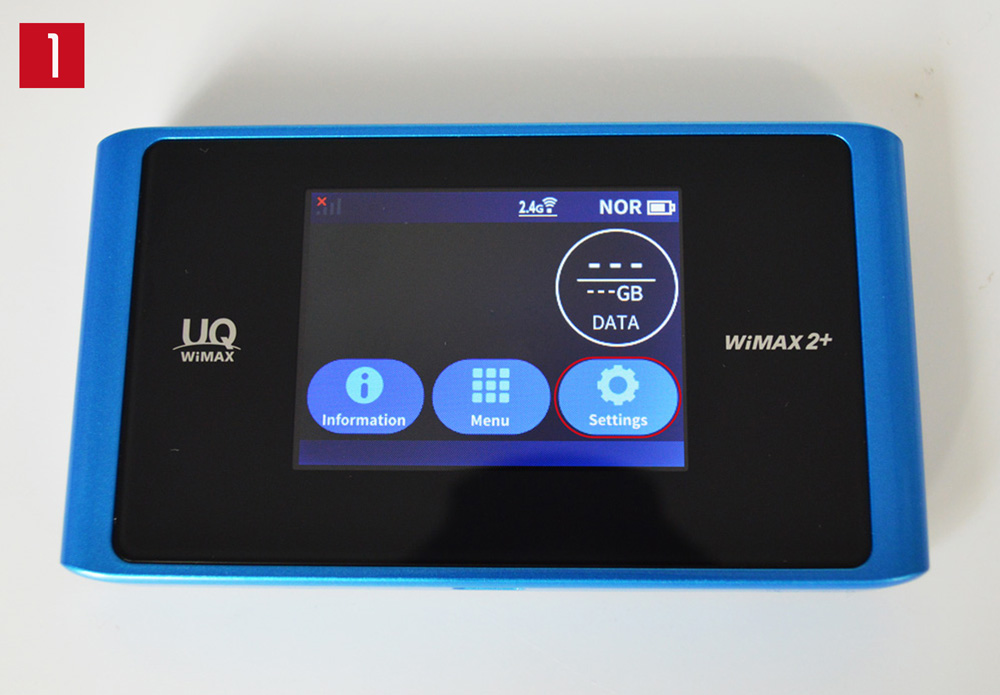

1.Press “設定”.

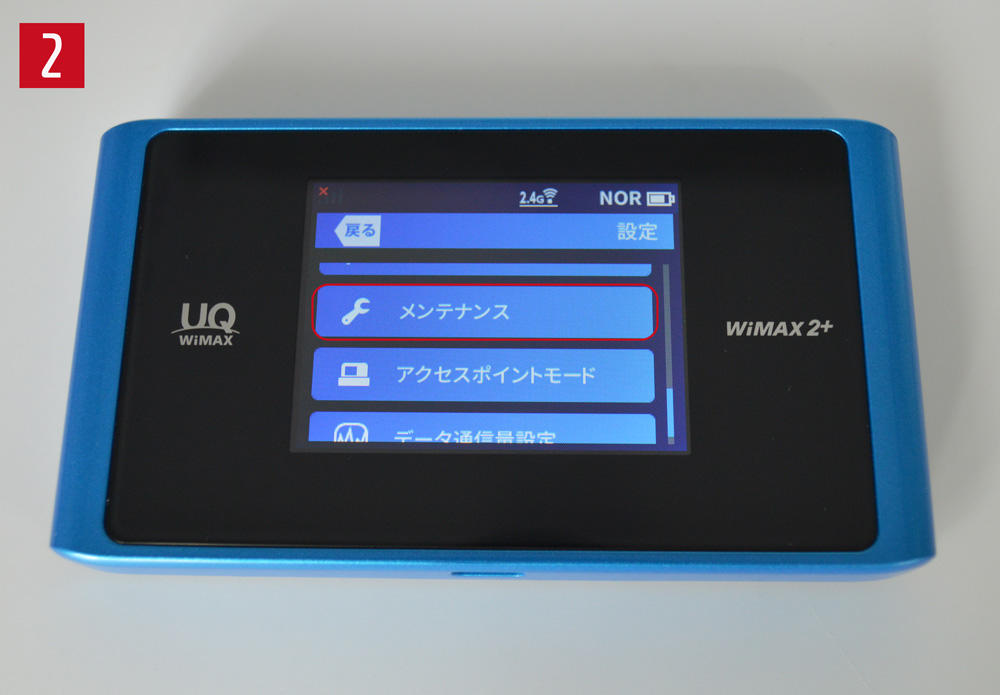

2.Press”メンテナンス”

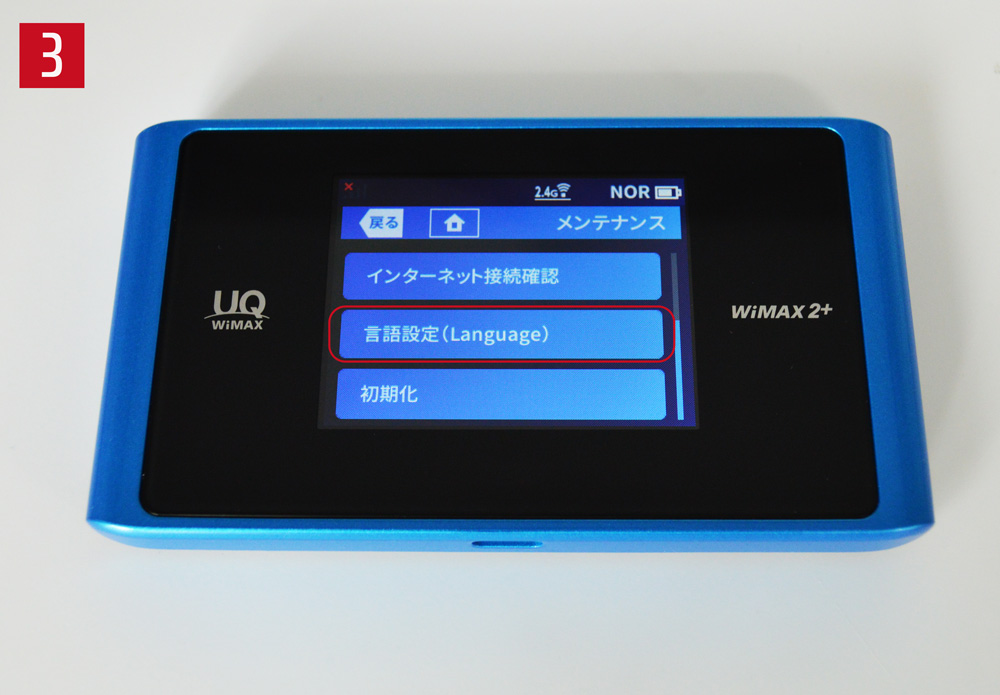

3.Press “言語設定（Language）”

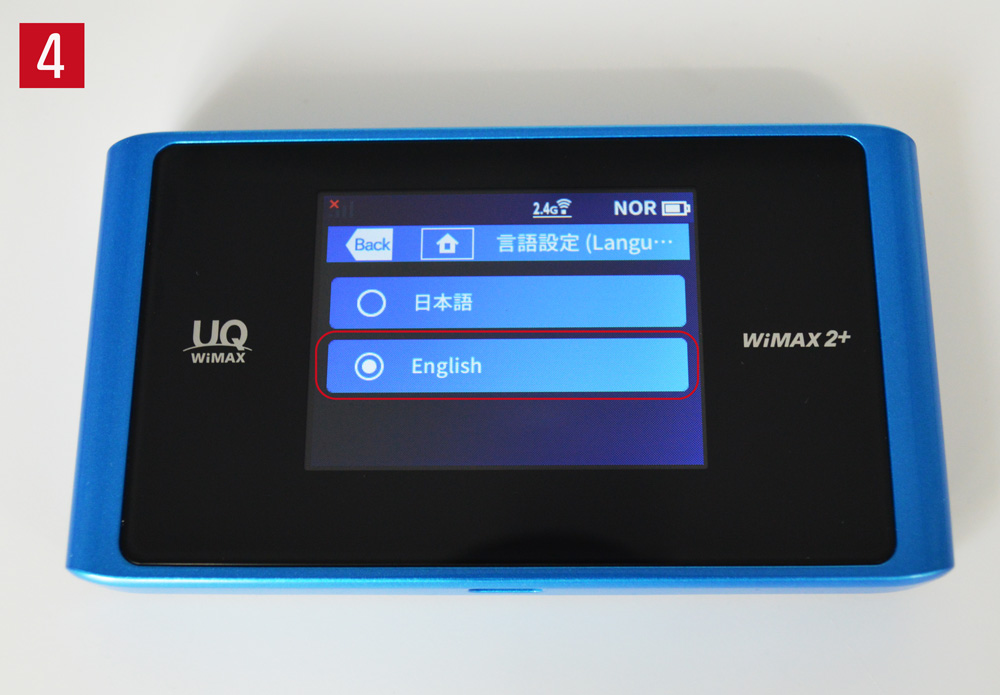

4.Select “English”
How to find a SSID and Password

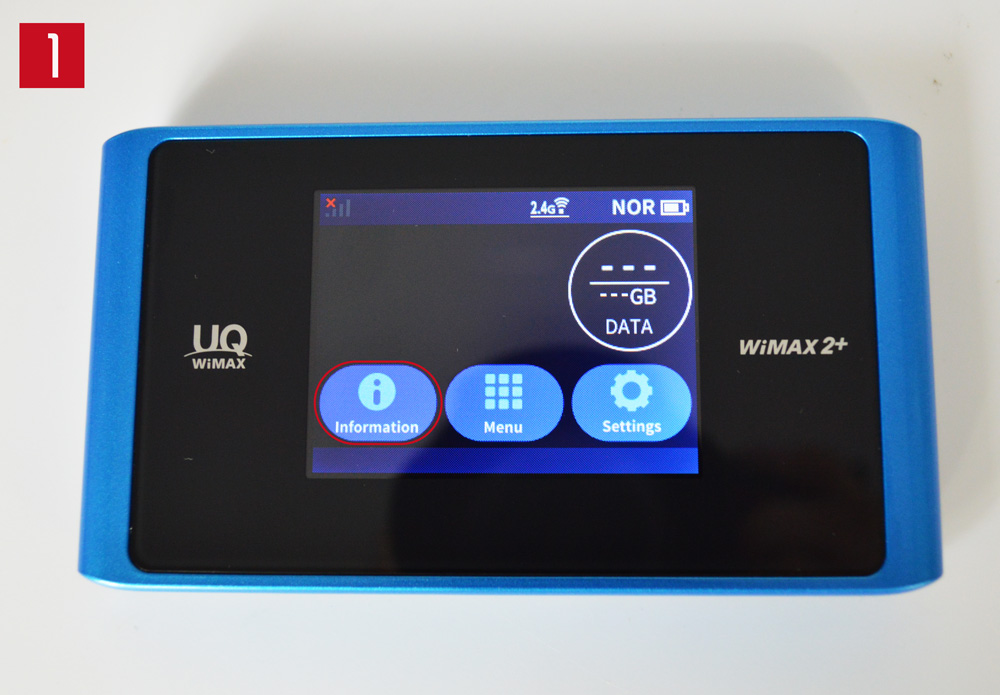

1.Press “Information”.

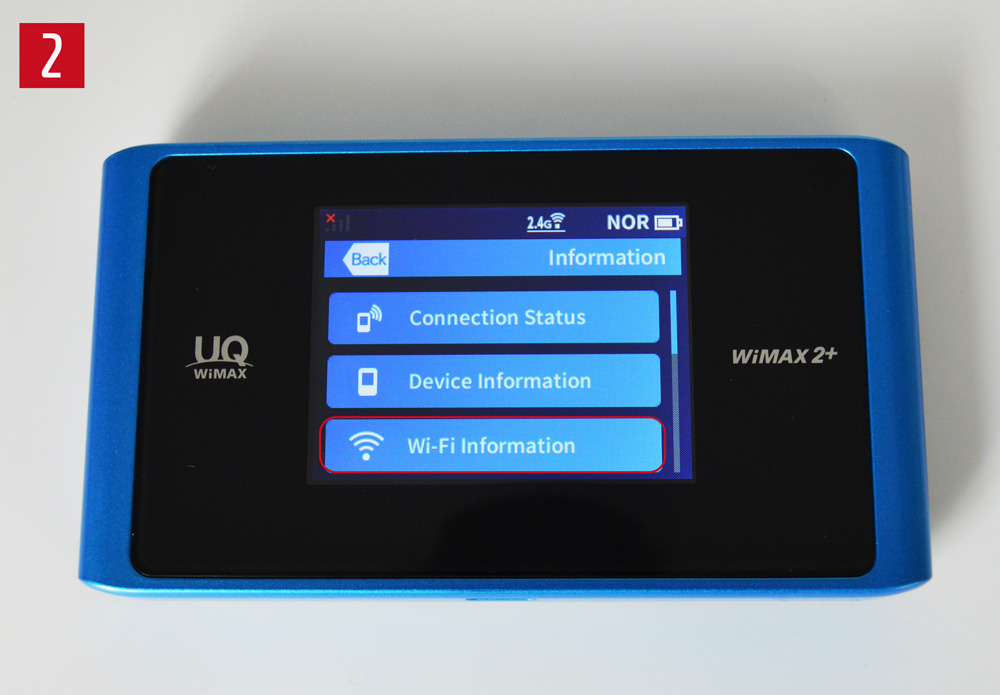

2.Select “Wi-Fi Information”

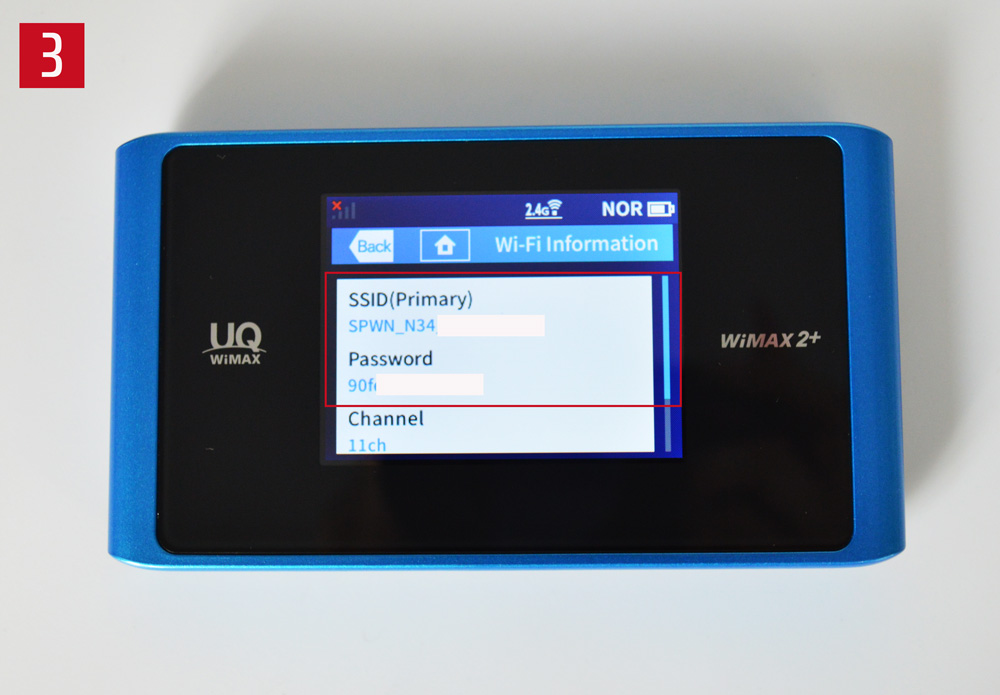

3.Once you have found the SSID on your pocket Wi-fi, look for the SSID on your phone/PC on the Wi-fi section. If you found the SSID on your phone/PC enter the password to connect to the Wi-fi. The password
is shown under the SSID.
WX04 Profile Setting
The following settings have been registered at the time of shipment.
If you had RESET the device,you have to need to setting following connection setup operations
*connect to WX04 on your PC or Mobile Phone and Start the web browser ,
Enter “192.168.179.1” in the address entry field.
(even if no signal, only can connect to “192.168.179.1”)
*You can change languages in English.
Click “Top Page”
Click ”advanced setting top”
NOTE : Please only Enter WX04 device IMEI last 5 digits.
①Enter WX04 IMEI last 5 digits ②Click “設定”
Click “Advanced Setting Top”
Enter “admin” to “ユーザー名” and
“WX04 device IMEI last 5 digits to パスワード” Then Click “ログイン”
①Click “Network Setting” ②Click “Profile Setting” ③Pull down “no setup”
*Please enter the information below
| ①Profile Name | SB |
| ②APN Name | plus.4g |
| ③User Name | plus |
| ④Password | 4g |
Choose pulldown▼
⑤Authentication type : CHAP
⑥IP Type : IPv4
⑦Apply
Click “Save”
①Click ”Basic Setting” ②pull down “High Speed Plus Area Mode” ③Click ”Apply”
Please check if the “Antenna” and “Wi-Fi” icons on the upper right turn light blue, it’s done.
WX04 How to restore data usage

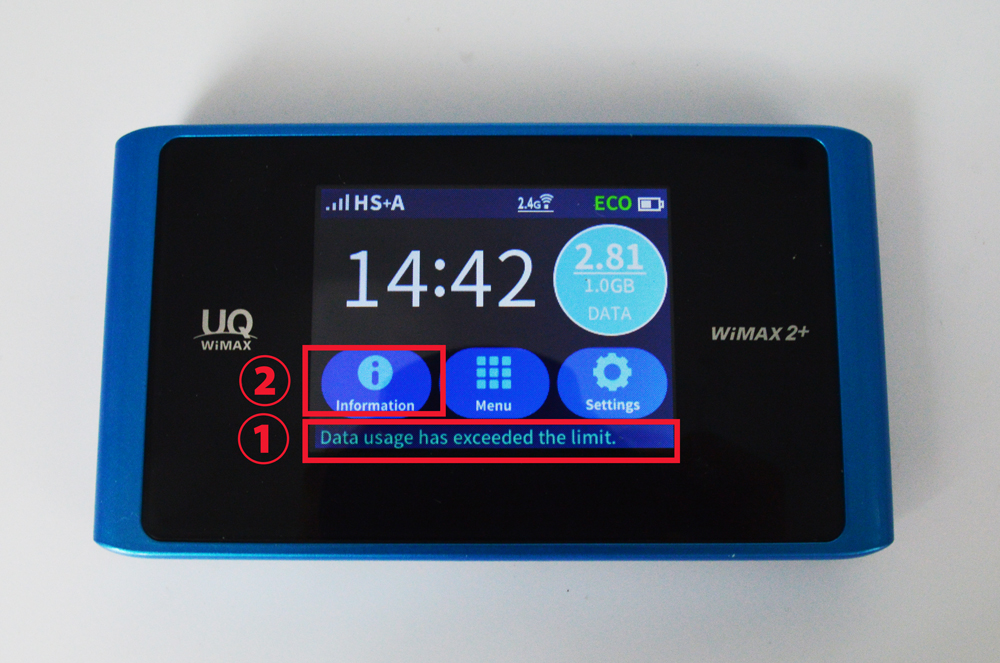

①Check the alert in a display ②Click “Information”

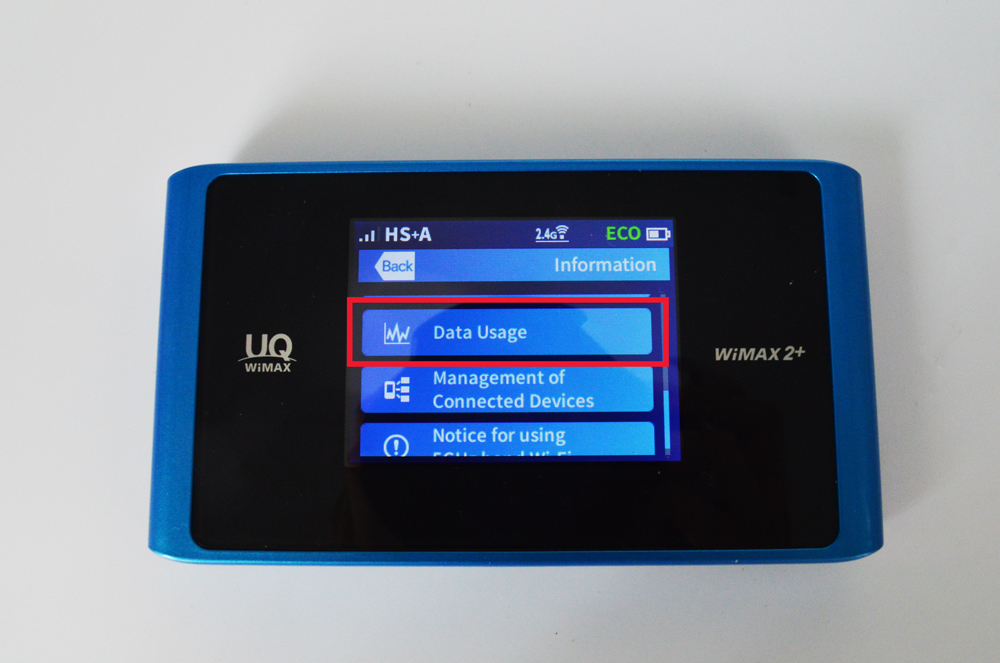

Scroll up then Click “DATA Usage”

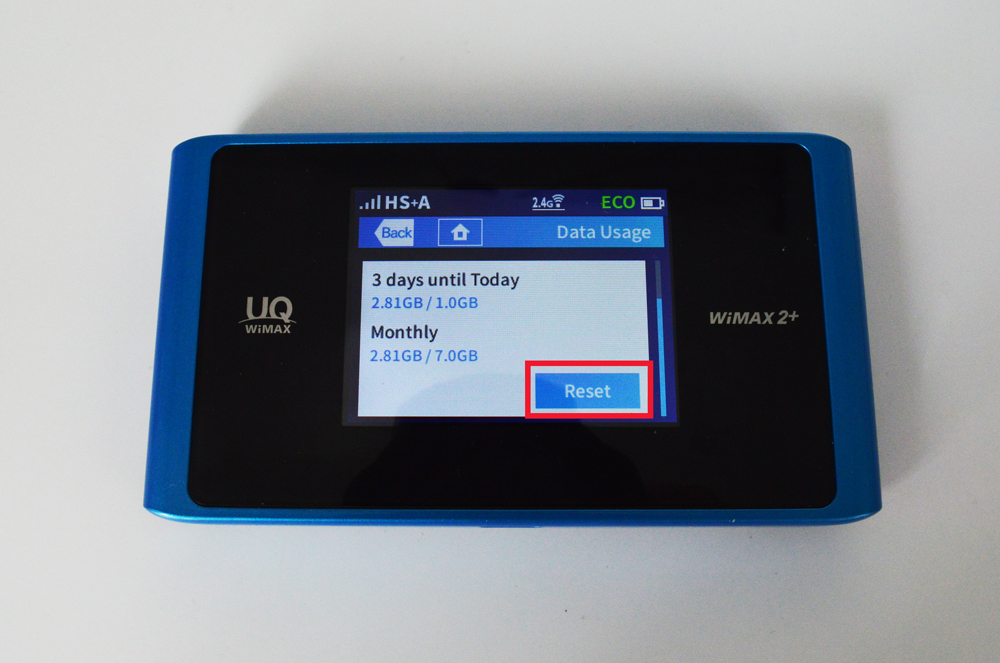

Scroll up then Click “Reset”
Thank you!
